10base-T Ethernet adapter LANCON-IP

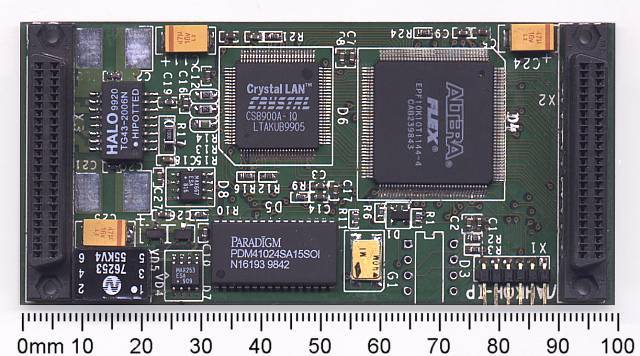

The LANCON-IP is the mezzanine module intended to work as 10base-T Ethernet adapter and can be mounted on CREDO-3IP or CREDO-3VD CPU modules or on other mezzanine carriers fulfilled in conformance with Industry Pack specification.
The area of application of the module is automatic and automated conrol systems of mobile objects (aircraft, ships, railway and automotive transport etc.), industrial control and data collection systems,  as well as in other systems, working in hard environments.

  System interface

System interface: IPbus in conformance with "IP Modules Draft Standard VITA 4-1995 Draft 1.0.d.0 April 7, 1995."

IPbus clock rate: 8 MHz.

IPbus cycles supported:

	I/O reads/writes;
	memory reads/writes;
	ID reads;
	Interrupt acknowlegement.

  Ethernet interface

Ethernet 10Base-T according to IEEE 802.3

Connection line: Twisted pair (STP or UTP), 100 Ohm. Category 5.

Full duplex operation.

I/O and memory access to Ethernet controller supported.

Transmit buffer: 1 Kbyte.

Receive buffer: 1 Kbyte.

  Miscellaneous features

Additional 64 Kbytes receive buffer with DMA emulation.

Power supply voltage +5 V ± 5%.

Power consumption not exceeding 1.2 Watt.

  Mechanical characteristics

Form factor: "IP Module, Type II" according to "IP Modules Draft Standard VITA 4-1995 Draft 1.0.d.0 April 7, 1995."

Overall dimensions: 99.1x45.7x10.8 (mm).

Mass not exceeding 80 gr.

  External environment

Operating temperature: from - 40°C to +75°C.

Storage temperature: from -50°C to +125°C.

Lowered pressure: 5 mm hg.

Humidity up to 100% RH with temperature +35°C.

Vibration (sinusoidal from 5 to 2000 Hz):  up to 10g.

Shock: up to 20g.
