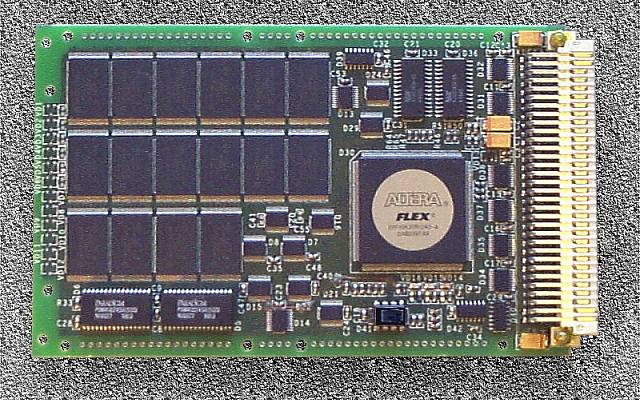

Flash-memory module OBRAZ-3

OBRAZ-3 is a reprogrammable flash-memory module intended for using as memory extension module with CREDO-3 CPU-module or with other ISAbus modules and systems.
The base area of application of OBRAZ-3 module are mission critical systems such as automatic and automated control systems of mobile objects (aircrafts, ships, railway and automotive transport and etc), industrial control and data collection systems,  as well as other systems, working in hard environments.

  Flash-memory

Up to 32 Mbytes of reprogrammable flash-memory based on AM28F016 ICs by AMD®.

Build-in automatic erasing and programming facilities.

256 Kbyte RAM buffer.

Two modes of flash-memory read access:

Two modes of flash-memory programming:

Typical 128 Kbyte block programming time:  0.9 sec.

Typical 128 Kbyte block erasing time: 1 sec.

  System interface

External interface logically compatible with ISA-bus. Electrical load up to 60 mA.

  Additional features

4 Kbyte non-volatile RAM intended for storage of flash-memory structure information.

Flexible module configuration with programmable base addresses.

  Power supply

Power supply voltage +5 V ±5%.

Power consumption not exceeding 5 Watt.

  Mechanical characteristics

Form factor: 3U, overall dimensions 100x167x13 (mm)
mass not exceeding 150 gr.

DIN 41612 Harbus64-type connector  (5 rows, 160 contacts).

Conduction cooled and rugged versions of this module are also available.

  External environment

Operating temperature:

Storage temperature: from -50°C to +125°C.

Humidity up to 100% RH with temperature +35°C.

Lowered pressure: 5 mm hg.

Vibration (sinusoidal from 5 to 2000 Hz):

Shock:
