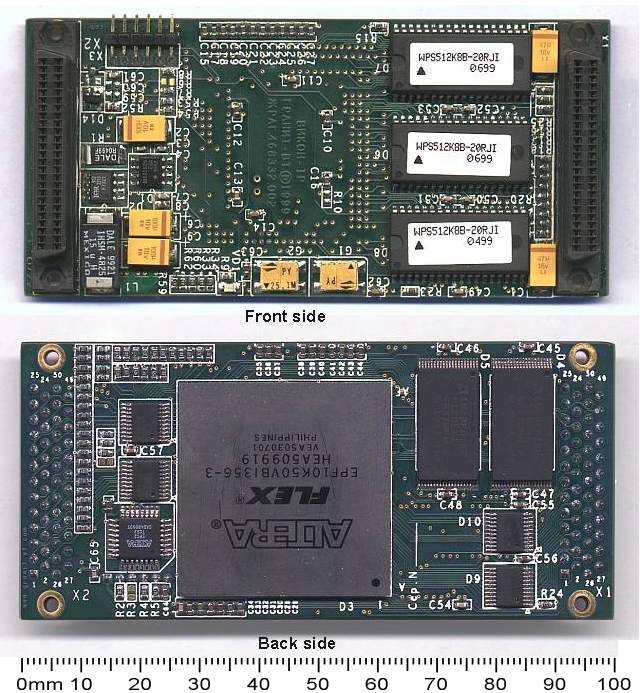

Videoadapter module VICON-IP

The VICON-IP is intended for interfacing between computing devises and electroluminescent displays produced by PLANAR® and with other displays having TFT LCD, Normal EL or VGA interfaces. It is possible also to interface VICON-IP with CRT displays by using additional video interface adapter.
The area of application of the module is onboard equipment of the automatic and automated control systems of mobile objects, and also other systems working in hard enviroment.
The VICON-IP fulfilled in “IP Module, Type II” form factor and can be used with CREDO-3IP or CREDO-3VD CPU modules or with other mezzanine carriers fulfilled in conformance with Industry Pack specification.

  System interface

System interface: IPbus in conformance with "IP Modules Draft Standard VITA 4-1995 Draft 1.0.d.0 April 7, 1995."

IPbus clock rate: 8 MHz.

IPbus cycles supported:

	I/O reads/writes;
	memory reads/writes;
	ID reads;

  Video interface

Video interface protocols: TFT LCD, Normal EL, VGA.

Screen resolutions: 640x200, 640x480, 720x400.

Color depth: 4 bits.

Video RAM: 512 Kbytes.

Video RAM structure:

  Miscellaneous features

Hardware facilities for display symbols with matrix up to 248х256 pixels in graphics modes.

4 Mbytes of software reprogrammable flash-ROM for font tables storage.

Power supply voltage +5 V ± 5%.

Power consumption not exceeding 7 Watt.

  Mechanical characteristics

Form factor: "IP Module, Type II" according to "IP Modules Draft Standard VITA 4-1995 Draft 1.0.d.0 April 7, 1995."

Overall dimensions: 99.1x45.7x10.8 (mm).

Mass not exceeding 80 gr.

  External environment

Operating temperature: from - 40°C to +75°C.

Storage temperature: from -50°C to +125°C.

Lowered pressure: 5 mm hg.

Humidity up to 100% RH with temperature +35°C.

Vibration (sinusoidal from 5 to 2000 Hz):  up to 10g.

Shock: up to 20g.
